User Authentication Service
- Service for authenticating users on specific handlers/routes for API's
- Includes 2 factor authentication with E-mail and SMS (Phone numbers), we're not going to do this for on-prem, will do it when AWS stack is deployed and can use SES or SMS services
User Model
| Field |
Type |
Description |
ID |
INTEGER |
Unique identifier associated with user model |
USERNAME |
VARCHAR |
Username of the user account |
EMAIL |
VARCHAR |
E-mail address associated with user |
PHONE_NUMBER |
VARCHAR |
Phone number associated with account |
2FA |
BOOLEAN |
Boolean to indicate if one of the 2 factor authentication methods is set up. |
PASSWORD |
VARCHAR |
Hashed password associated with account |
CREATED_AT |
DATE |
Date the user was created/registered |
UPDATED_AT |
DATE |
Date the user entry record was updated/modified |
LAST_LOGIN |
DATE |
Date of last time user logged in |
| ## Routes |
|
|
- Main routes the user management service will expose for general authentication & registration and 2 factor validation.
| Route |
Path |
Description |
| Register |
/users/register |
Create a new user & register with required user model fields |
| Bulk Register |
/users/bulk |
Bulk register an array of user objects |
| Login |
/users/login |
Provide username and password, retrieve back API token for authenticating with other routes. |
| 2FA |
/2fa |
Validate account login with 2 factor authentication method, provide one time pass-code from E-mail or text message. |
| Password Reset |
/password-reset |
Reset password, will be sent E-mail associated with account. |
| Delete User |
/users/:id |
Delete a specific user on the service, 2 factor authentication required for deleting account |
| Bulk Delete |
/users/bulk |
Bulk delete users with id's provided |
| Update User |
/users/:id |
Update a specific user and modify the existing fields, changing E-mail or Phone number will prompt for a one time pass code. |
| Bulk Update User |
/users/bulk |
Update an array of users, pass user ids of each object |
Two Factor Authentication
- User will register on the site with their information, provide the fields required for the user model entry, store the entry in the database.
- Once user is successfully created, the user then has the option to secure the account more with 2 factor auth methods such as E-mail or text message.
- If the 2 factor authentication method is set to true for the user profile, they will be re-directed to a 2FA screen to validate a code after logging in.
- 2 factor authentication login sessions store the codes temporarily in the database for up to 15 minutes. The table in the database indicates if the code is active and user associated.
- Date retention policy set up on one time pass code table entries. On a certain time intervals, inactive pass codes get deleted from the database.
Table Storing One Time Pass Codes
Note: Not completing this in first iteration but will be needed later down the road for E-mail confirmation and sign ups.
| Field Name |
Type |
Description |
ID |
INTEGER |
Unique identifier associated with code generation for 2FA |
USER_ID |
INTEGER |
User account one time pass code was generated for |
OTP |
INTEGER |
6 digit one time pass code for 2 factor auth |
EXPIRATION |
DATE |
Date timestamp of when one time passcode is suppose to expire |
ACTIVE |
BOOLEAN |
Boolean to indicate if one time pass code entry is still valid for authentication. |
CREATED_AT |
DATE |
Date the 2 factor auth entry was created/registered |
UPDATED_AT |
DATE |
Date the 2 factor auth entry was updated |

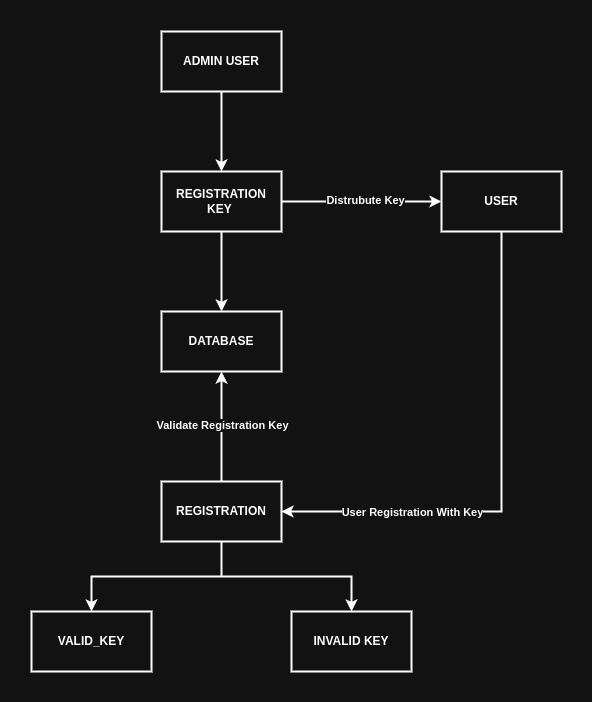

Registration Key Management
- For applications with authentication but not available for full public use, a registration key system will be used to issue unique invites.
- The user registration route will need to reference registration keys stored in the database to validate if a requester has permission to create an account.
- When a user successfully registers an account with the system, the registration key will be marked as inactive and then can no longer be used to register any more accounts.
Registration Key Table
| Field Name |
Type |
Description |
ID |
INTEGER |
Unique identifier associated with code generation for 2FA |
REGISTRATION_KEY |
INTEGER |
User account one time pass code was generated for |
ACTIVE |
INTEGER |
6 digit one time pass code for 2 factor auth |
CREATED_AT |
DATE |
Date the registration key was created |
UPDATED_AT |
DATE |
Date any of the registration key fields were updated. |
