Application Service Module

  • General module for deploying infrastructure for new "full stack" applications.
  • Deployment for infrastructure is separated between home development server and AWS cloud infrastructure. Github actions will deploy to both environments.
  • Base infrastructure requires a postgres deployment, a public registry to push docker containers to, and network setup on the AWS side.

On Premises

Component Description
Docker Registry Local docker registry hosted on server, all application docker images are pushed to this registry and pulled down during app deployment
Postgres Deployment A postgres database cluster needs to exist in order for applications to create databases on it. Deployment is mimimal with no networking setup and regular username and password authentication for now.
API Source Code Container All application source code is docker containerized and depends on the local registry existing so that the application source code can be pushed to it.

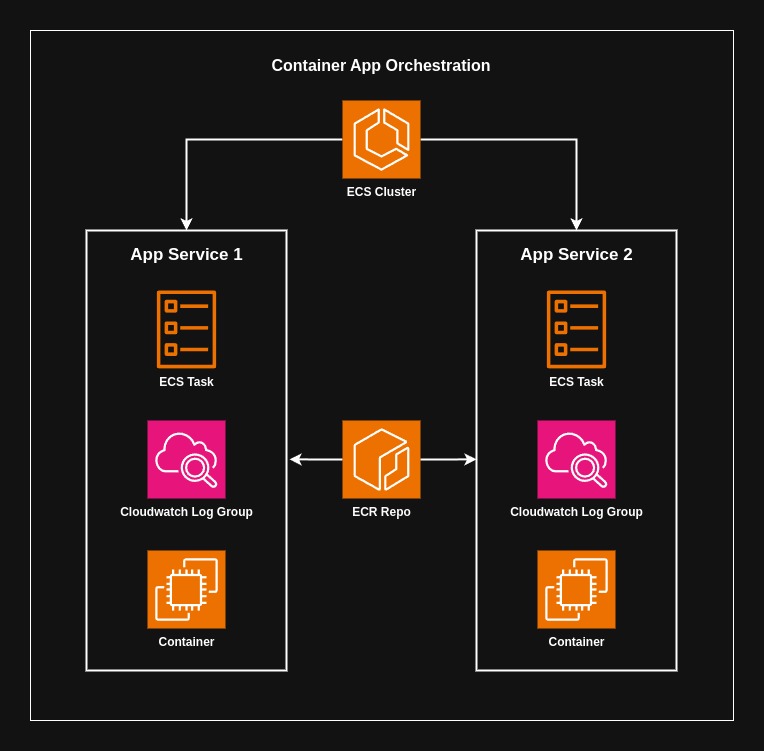

Container Service Orchestration

application-service-on-prem

  • ECS Cluster: ECS cluster hosts all container app services, ECS task execution role is attached to cluster to allow tasks to be executed for each container
  • App Service: App service is deployed within the ECS cluster, pulls container from ECR, then creates a ECS service with a task definition, task definition hosts on port 80/443 for web traffic. Logging is enabled which will log to a corresponding cloudwatch group for monitoring.

Application Service Architecture

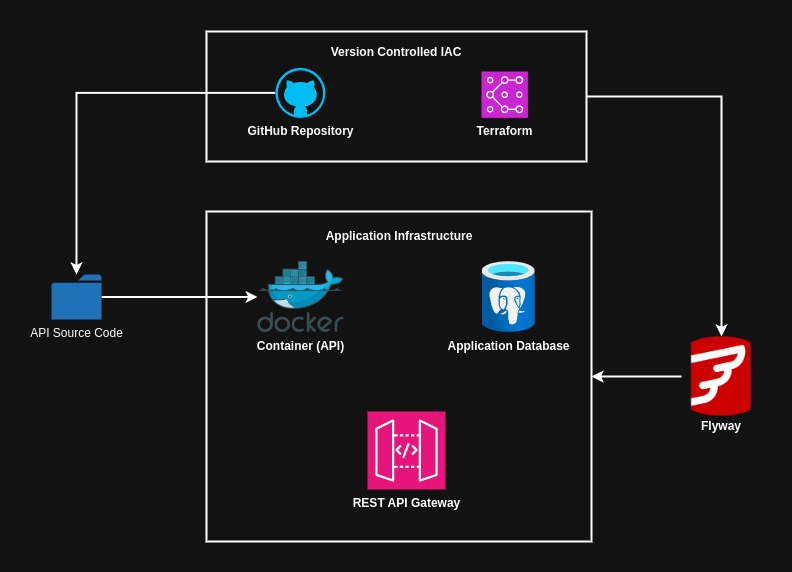

application-service-on-prem

  • Infrastructure for managing deployments on the on premises server (ubuntu home server) will be version controlled in GitHub with terraform templates/modules
  • Terraform modules will manage docker containers and the application database (postgreSQL). Pushing API source code to the docker container might also be managed by terraform
  • The application database migrations will be done using Flyway to keep track of all schema changes/database management.

On Premise Container Registry

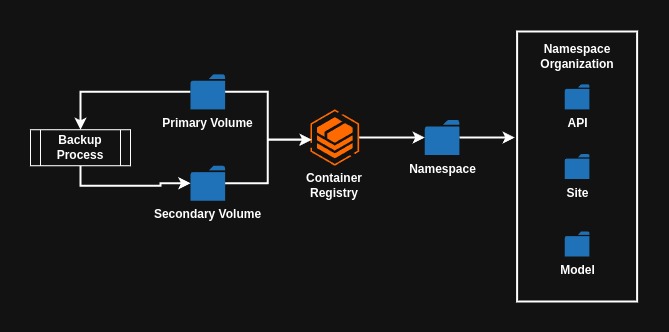

container-registry-on-prem

  • Hosting a container registry on home server for development and staging of applications before going to production AWS account
  • Container registry will have 2 volumes, primary and second volumes for backup recovery and application migrations.
  • Registry will have a namespace organization mechanism, api for rest API's, site for front end application source code, model for machine learning models

Cloud Application Service

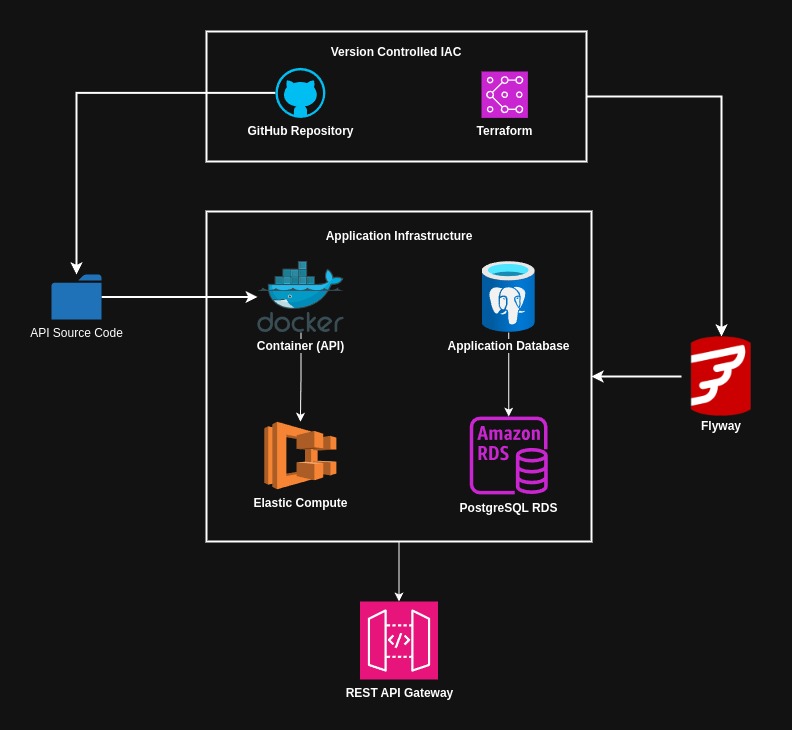

application-service-cloud

  • Infrastructure for managing deployments to AWS account will be version controlled in GitHub with terraform templates/modules, authorized to deploy to AWS using open ID connect role.
  • Terraform will manage an AWS stack that contains docker containers on ECS and postgreSQL databases using RDS. Each application will contain this stack of resources.
  • The application database migrations will be done using Flyway to keep track of all schema changes/database management.

Features

Feature Alias Description
Application database module Module for creating postgres database infrastructure and local docker container for development.
REST service module Module for deploying REST API's. Includes container deployment for API source code with AWS and home server.
Client side module Module for hosting infrastructure needed for front end web applications. Includes deployment to S3 for cloud storage and home server docker container.
